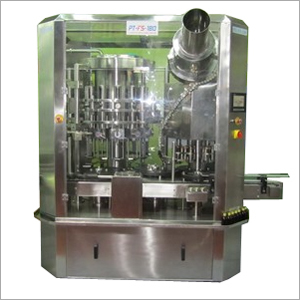

Liquid Filling Machine

Liquid Filling Machine
Liquid Filling Machine
Product Code : 17
Product Description

1. EMPTY BOTTLE INSPECTION UNIT

Looking for the world-class Empty Bottle Inspection Unit? We are providing this unit with a slat conveyor. It also has a lighting and magnifying arrangement. Before the bottles are conveyed from the washing machine to filling machine, these are tested against defects and cracks or any foreign particles.

2. PT-FS AUTOMATIC LIQUID FILLING & SEALING MACHINE

A perfect amalgamation of Rotary Type Volumetric Filling and ROPP Cap Sealing our manufactured machines are catering to high-speed production demands and requirements of clients. PT-FS is supplied in different capacities from 2-head, 4-head, 6-head, 8- head, 12-head, 16-head to 20-head configurations. It meets GMP standards as it is compact its process confirms contamination free filling, due to the capping is instant and does not allow exposure of the liquid. It is apt for filling and sealing goods like Pesticides, Cosmetics, Pharmaceuticals, Beverages, etc. the liquid is filled in plastic bottles, glass bottle, cans etc.

Simple design of PT-FS enables easy cleaning and changeover of parts.

PT-FS operates on volumetric positive supplanting piston dozing principle.

OPERATION:

PT-FS operates based on a constant procedure of filling and sealing.

Using S.S. slat conveyors, the washed and dried empty bottles are carried to the machine. The infeed worm is used to convey the bottles and for feeding them into the star wheel that in turn, convey the bottles to the lifting stand of the filling segment. The bottles are then lifted and positioned below the filling nozzles using a guide that places the bottles below the nozzles.
Installed sensors detects the existence of bottle and stimulates the pneumatic cylinder for rotating the valve at the discharge position for providing pre-set capacity of liquid into the bottles. For transferring the liquid into syringes that are erected on rotor blocks, the stainless-steel ampule is installed at the center of PT-FS. The liquid is transported from the storage tank using a stainless-steel pipeline associated to a solenoid valve. It allows instant filling of liquid tank as soon as the level declines. Syringes pistons change up and down on a cam track whereas they draw the liquid of the filter tank into the syringes using rotary valves. Afterward the liquid gets into the bottles, the bottle-holding platform drops the bottles and carries them to the sealing head using the transitional star wheel. The bottle choices up the cap from shoe of the chute that is linked to the hopper of the covering section.

Caps can be overloaded to hopper either by hand or using a blower unit.

Blower Unit:

The bottles move beneath the sealing head. The sealing head closures the bottles and later takes them to the slat Conveyor frontward allocate to the check machine

3. FILLED BOTTLE INSPECTlON TABLE

The filled bottles are taken to the slat conveyor of the examination unit. The bottles pass via the examination unit in a slanted position and rotate using an especially designed conveyor track. The examination unit is offered with lighting arrangement and magnifying glass. As the bottles are rotating in a slanted position, the operator examining the bottles can recognize any foreign particles, cap refutation and cracking of bottles. The excluded bottles are selected and kept in a dispersed rejection tray offered at the side of the examination table.

4. Automatic Dosage Cup Placing & Pressing Machine

The Dosage Cup Placing machine contains of a rotary hopper, S.S. Slat conveyor, with chute and shoe, and cup pressing rollers and adjustable speed arrangement. Following inspection, the sealed bottles are taken to the Pressing machine and Dosage Cup Placing where dosage cups are positioned on the sealed bottles and compelled by the pressing rollers. These bottles are then taken to forwards packing line.


Model I.T.

No. of Track

Main Drive Motor

Overall Dimensions (mm)

Weight Kg.

L

W

H

80/







100/







120

Single

0.5 H.P.

840

635

1400

175

180

4

1 H.P.

2340

925

1400

270

240

4

1 H.P.

2800

925

1400

350

300

4

1 H.P.

2850

925

1400

350


Technical Specification :

Diameter of bottle

30 mm to 80 mm + 1 mm

Main Motor

1 H.P.; 1400 RPM; 3 Phase

Height of bottle

45 mm to 300 mm + 1 mm

Hopper Drive Motor

0.5 H.P.; 1400 RPM; 3 Phase

Shape of measuring Cup

Cylindrical

Overall Dimensions

Length : 2200 mm
Width : 775 mm
Height : 2480 mm

Direction of Bottle Movement

Left to right

Weight

365 Kgs.

Bottle specification

  • Power supply : 3 phase, 440volts, 50Hz
  • Filling range: 15ml. To 500 ml.
  • Accuracy : ±1% of the volume to be filled
  • Direction of movement: Left to right
  • Bottle diameter: 30mm to 80mm ±0.5mm
  • Height: 45mm to 300 mm ±1mm

Technical specification :

Model

FS-40

FS-80

FS-100

FS-120

FS-180

FS-240

FS-300

Main drive motor

2 H.P

3 H.P

3 H.P

3 H.P

5 H.P

5 H.P

7.5 H.P

Sealing head lifting motor

Hopper motor 0.25

0.5 H.P

0.5 H.P

0.5 H.P

0.5 H.P

0.5 H.P

0.5 H.P

No. of filling heads

2

4

6

8

12

16

20

No of sealing heads

1

4

6

8

8

12

12

Output

25-50 BPM

40-80 BPM

60-100 BPM

80-120 BPM

100-180 BPM

150-240 BPM

180-300 BPM

Overall dimensions

Length

1500mm

2600mm

2600mm

2600mm

2600mm

3845mm

3845mm

Width

975mm

1400mm

1300mm

1500mm

1640mm

2065mm

2340mm

Height

2270mm

2600mm

2600mm

2600mm

2600mm

2750mm

2750mm

Weight

1575 kgs

2200kgs

2300kgs

3040kgs

3280kgs

4275kgs

5030kgs
